Custom Refractory Metal Products for High-Temperature Applications
Molybdenum, Tungsten, Tantalum & Niobium Rods, Plates, Crucibles, Boats, and Furnace Parts
Looking for high-performance, custom-made refractory metal products for extreme temperature environments? We specialize in manufacturing molybdenum, tungsten, tantalum, and niobium components tailored to meet the toughest industrial requirements.
Molybdenum
- High melting point: 2,623°C
- Excellent strength at elevated temperatures
- Low thermal expansion
- Superior thermal conductivity
- Resistance to molten glass & metals
Tungsten
- Highest melting point: 3,422°C
- Exceptional density and hardness
- Outstanding creep resistance
- Low thermal expansion coefficient
- Superior radiation shielding
Tantalum
- Melting point: 3,017°C
- Exceptional corrosion resistance
- Biocompatible and non-reactive
- High capacitance density
- Resistant to chemical attack
Niobium
- Melting point: 2,468°C
- Superior superconducting properties
- Excellent formability and ductility
- Outstanding corrosion resistance
- Low neutron absorption cross-section
Our Product Range Includes:
Rods & Bars – Precision-machined to meet exact diameter and length specifications
Plates & Sheets – High-purity metal sheets for industrial and scientific applications
Crucibles & Boats – Ideal for melting, evaporation, and high-temp processing
Vacuum Furnace Parts – Including heating elements, supports, shields, and more
Custom Components – Manufactured to your drawing or sample, with strict tolerance control
Technical Specifications

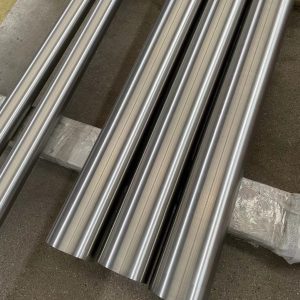

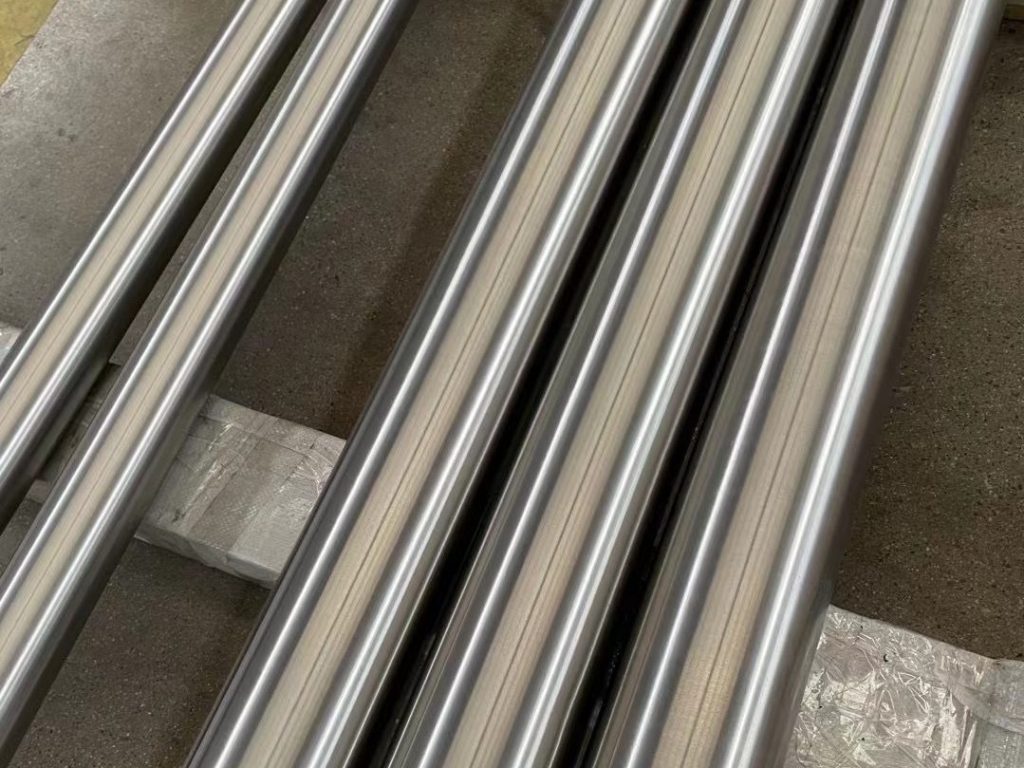

Molybdenum, Tungsten, Tantalum, and Niobium Rods
| Material | Diameter Range (mm) | Length (mm) | Purity | Application |
|---|---|---|---|---|
| Molybdenum (Mo) | Φ1 – Φ120 | 50 – 2000 | ≥99.95% | Vacuum furnace parts, heating elements |
| Tungsten (W) | Φ1 – Φ100 | 50 – 1500 | ≥99.95% | High-temperature heating components |
| Tantalum (Ta) | Φ2 – Φ80 | 50 – 1500 | ≥99.95% | Medical, aerospace, electronics |
| Niobium (Nb) | Φ2 – Φ60 | 50 – 1200 | ≥99.9% | Semiconductors, laboratory equipment |

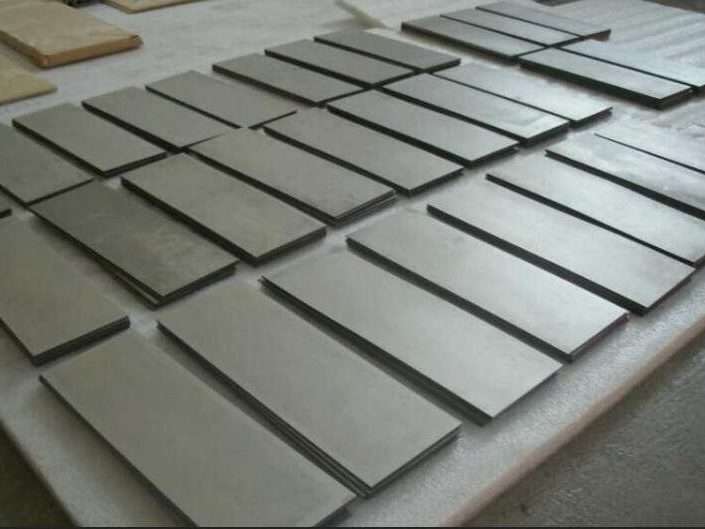

Plates & Sheets
| Material | Thickness (mm) | Width (mm) | Length (mm) | Purity |
|---|---|---|---|---|
| Molybdenum | 0.1 – 50 | 10 – 600 | 10 – 1500 | ≥99.95% |
| Tungsten | 0.1 – 30 | 10 – 500 | 10 – 1000 | ≥99.95% |
| Tantalum | 0.05 – 20 | 10 – 300 | 10 – 1000 | ≥99.95% |
| Niobium | 0.1 – 10 | 10 – 300 | 10 – 1000 | ≥99.9% |

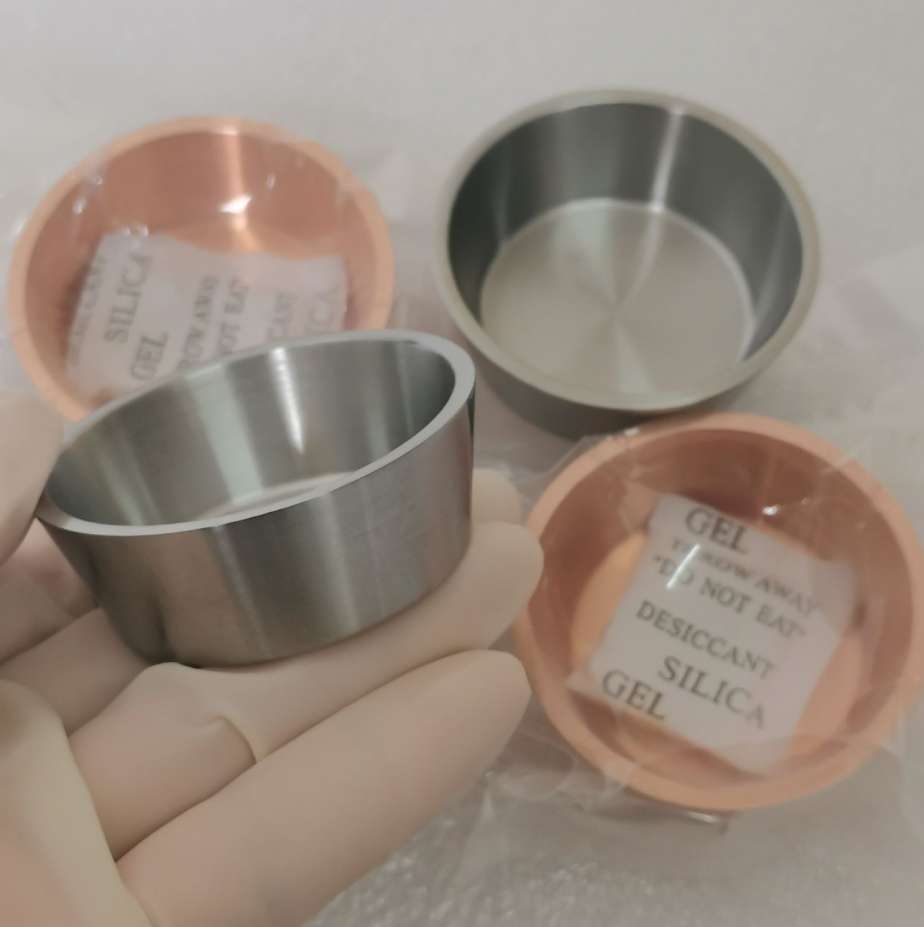

Crucibles & Boats
| Material | Shape | Wall Thickness (mm) | Capacity (ml) | Max Working Temp (°C) |
|---|---|---|---|---|
| Molybdenum | Cylindrical / Conical | 0.3 – 3 | 10 – 5000 | ~1900°C |
| Tungsten | Cylindrical / Boat | 0.5 – 5 | 10 – 3000 | ~2400°C |
| Tantalum | Round / Rectangular | 0.3 – 2 | 5 – 2000 | ~1800°C |
Vacuum Furnace Components
| Component | Material | Application | Customization |
|---|---|---|---|
| Heating Elements | Molybdenum / Tungsten | Heat generation in vacuum chambers | Yes, based on drawing/specs |
| Furnace Shields | Molybdenum | Heat insulation and efficiency | Yes |
| Supports, Racks & Fixtures | Molybdenum / Tungsten | Structural components in high-temp furnaces | Yes |
Why Choose Our Refractory Metal Products?
Extreme Heat Resistance – Suitable for applications above 2,000°C
High Purity & Quality – 99.95%+ purity levels ensure performance in sensitive processes
Custom Sizes & Shapes – We produce according to your exact specifications
Corrosion & Wear Resistance – Ideal for chemical, aerospace, semiconductor, and metallurgy industries
Reliable Support – Fast response, expert technical guidance, and global shipping
Which Industries will use molybdenum tungsten tantalum and niobium Products

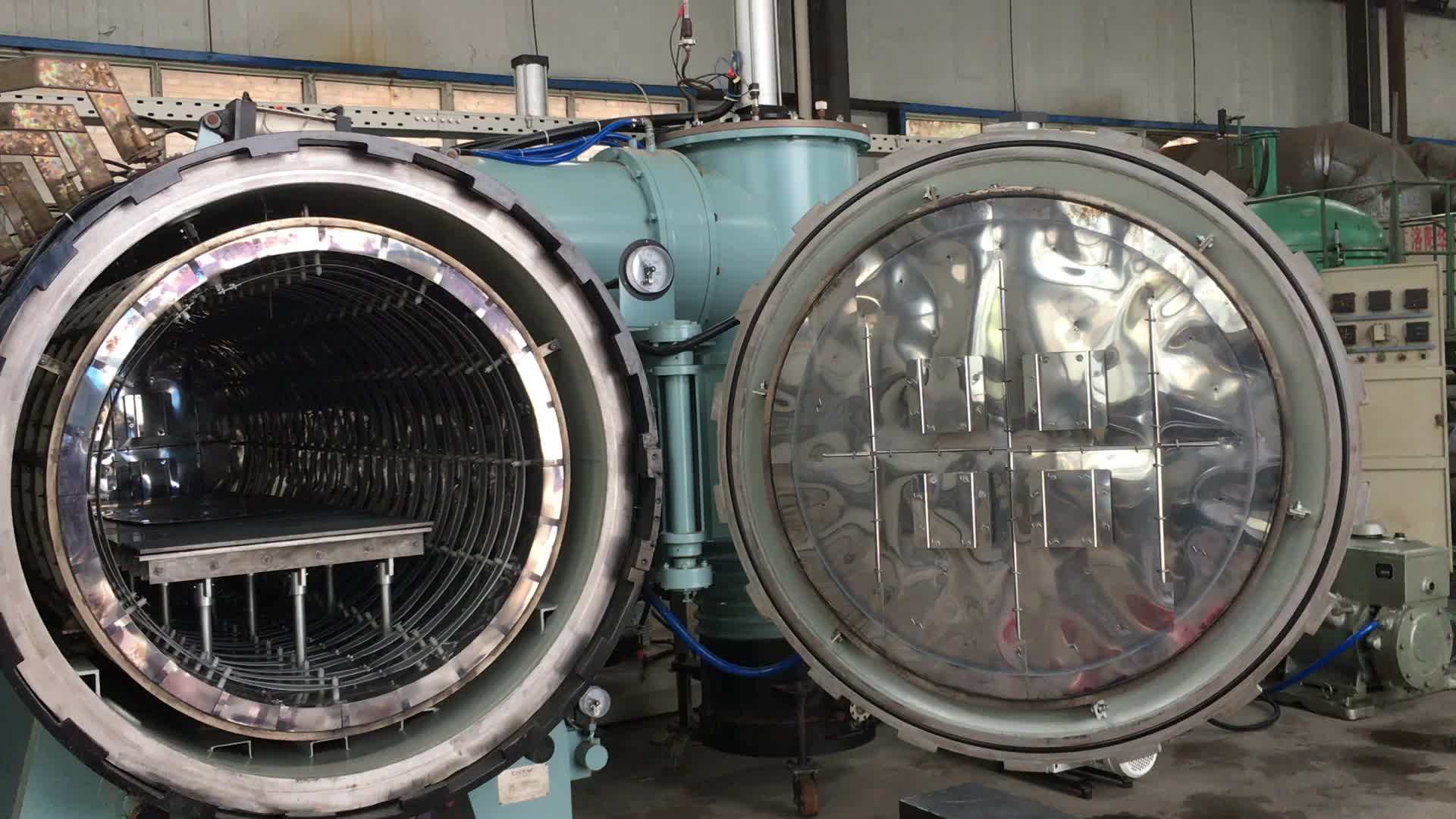

Vacuum Furnace Manufacturing
High-temperature heating elements, radiation shields, furnace fixtures, and thermal insulation components.
Aerospace & Defense

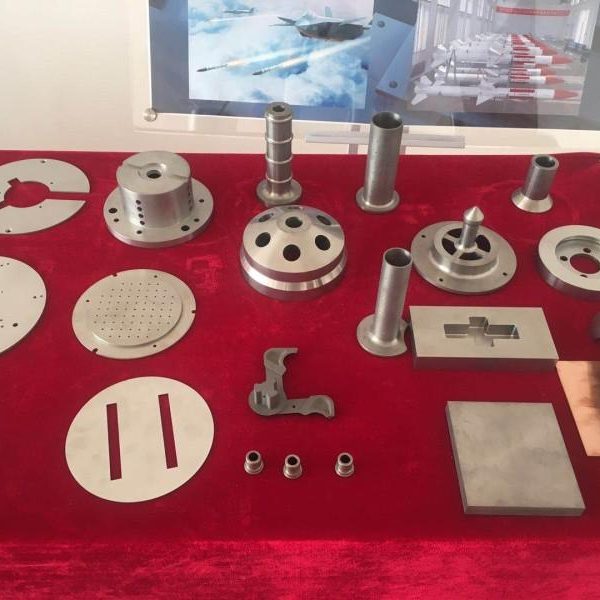

Rocket nozzles, turbine blades, heat shields, and components for hypersonic applications.
Semiconductor Fabrication

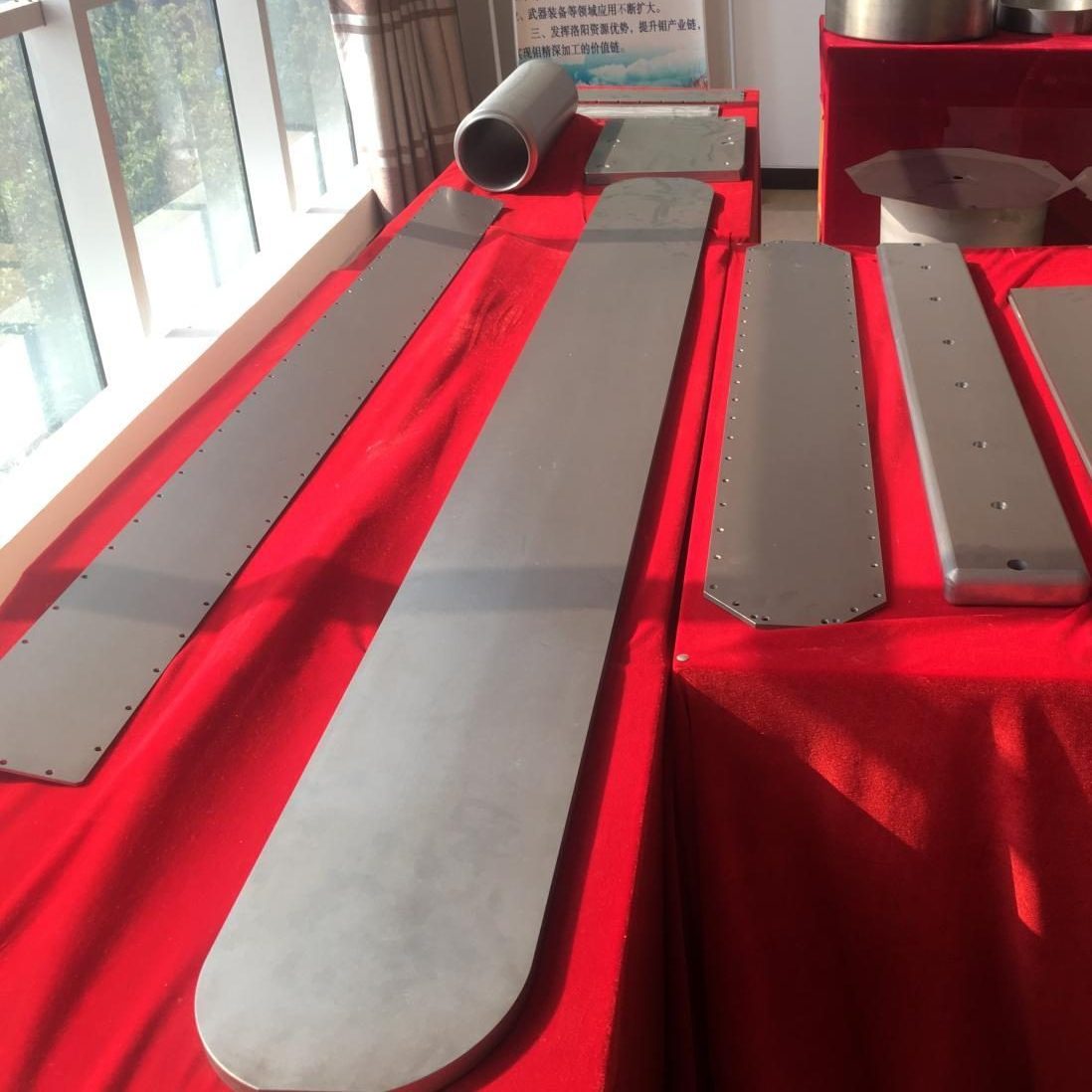

Sputtering targets, crucibles, wafer boats, and process components for chip manufacturing.
Chemical Processing
Corrosion-resistant vessels, piping, valves, and heat exchangers for aggressive chemical environments.
Medical & Laboratory
MRI components, radiation therapy devices, surgical implants, and analytical equipment parts.
Metallurgy & Powder Sintering
Sintering trays, boats, pusher plates, and sintering furnace components.
Neodymium Magnet Production
Crucibles, molds, and evaporation boats for NdFeB magnet manufacturing.
Molybdenum

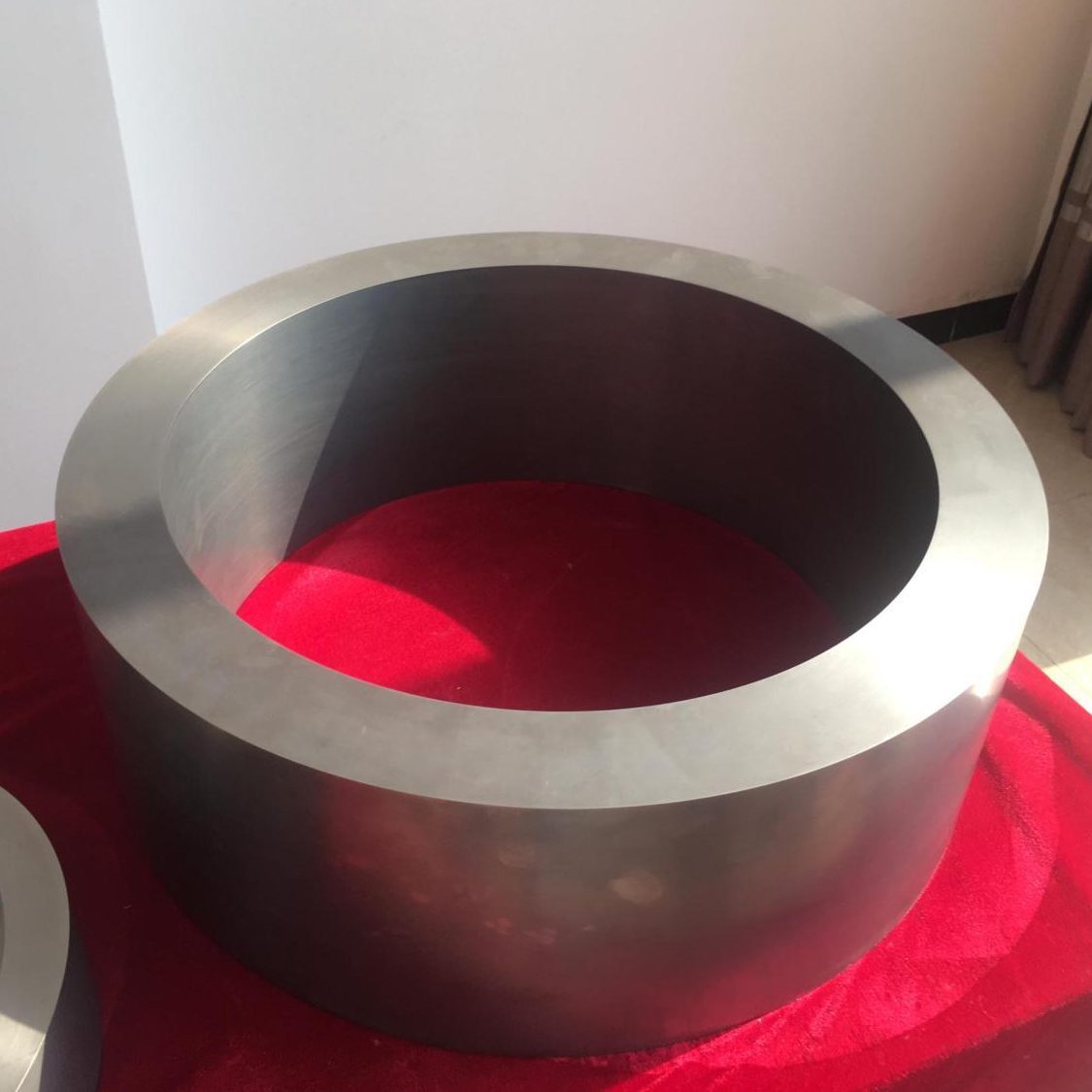

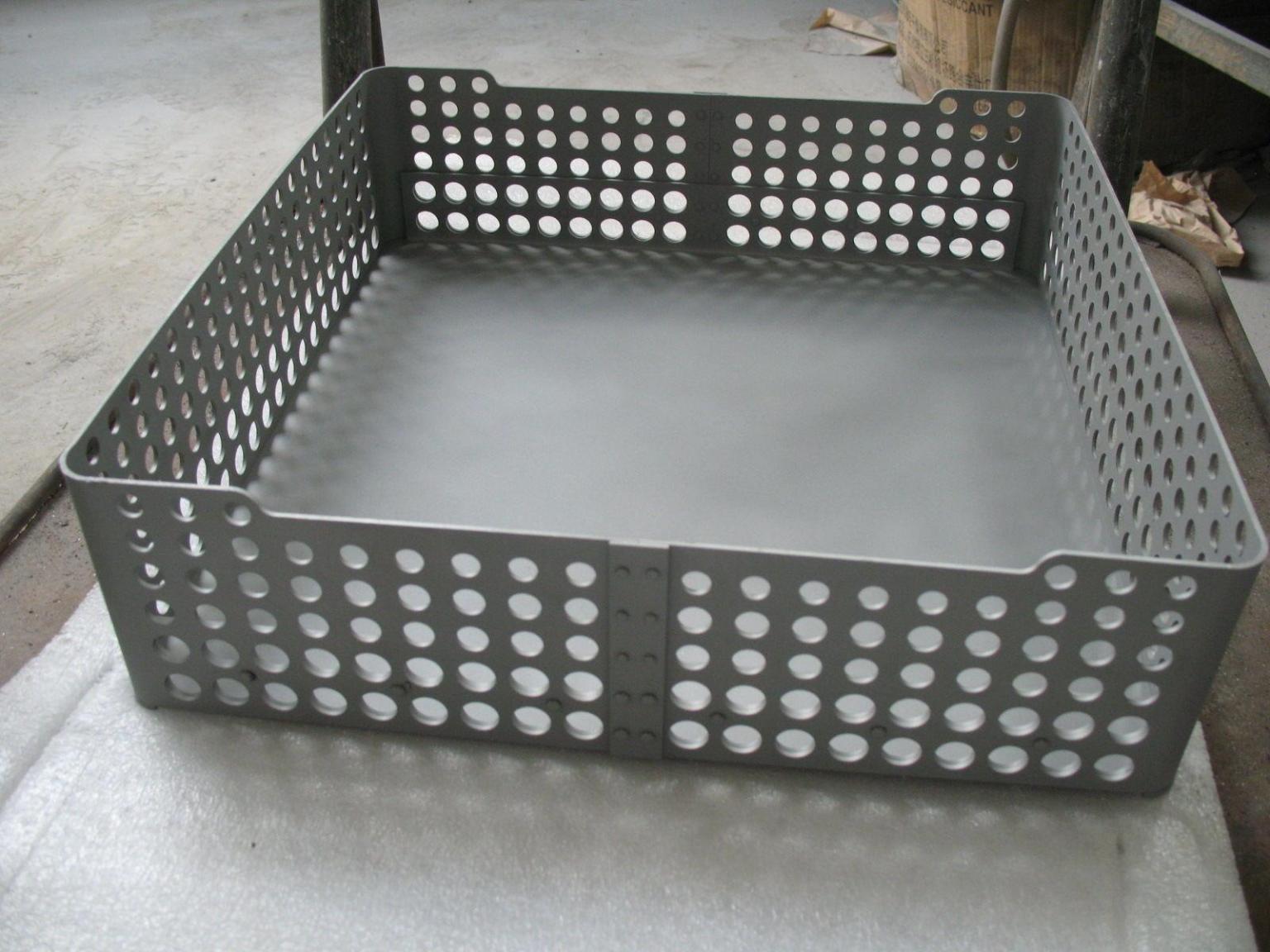

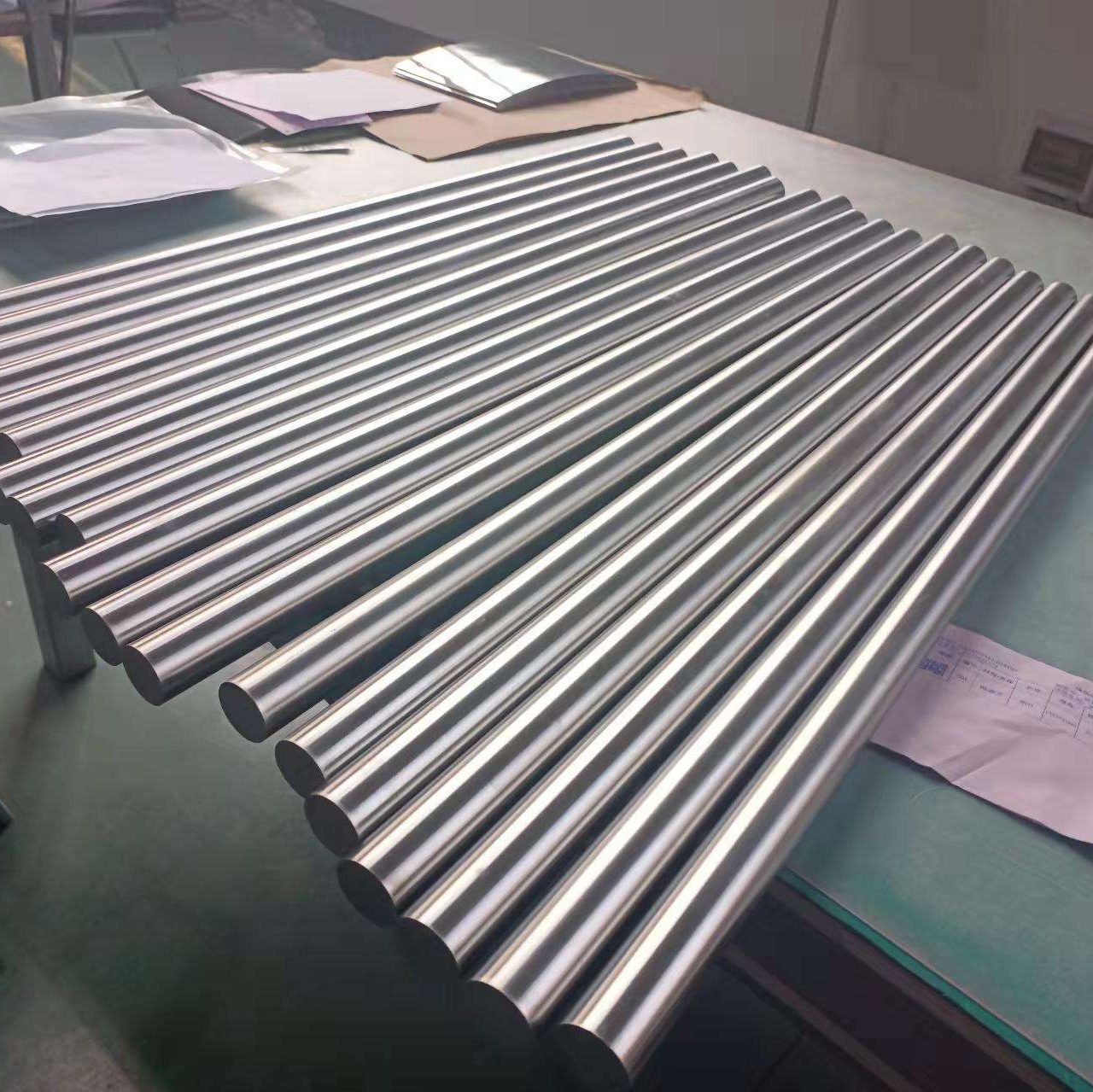

High quality raw Molybdenum, semi-finished Molybdenum (pure molybdenum, TZM, Mo-La Alloy, etc.) and molybdenum machined parts.
tantalum
Tantalum and tantalum alloy (Tantalum tungsten, tantalum niobium, tantalum zirconium, etc.) customized parts, tantalum powder, tantalum oxide, etc.
Tungsten
High quality and custom pure Tungsten, Tungsten composites, Tungsten carbide bits, Tungsten alloys parts and raw Tungsten materials.
Niobium
Custom Niobium foil, Niobium sheet, Niobium plate, Niobium strip, Niobium wire, Niobium rod, Niobium tubing, Niobium capillary, Niobium zirconium alloy and other products

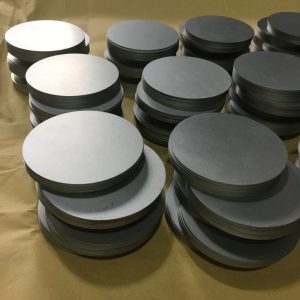

Molybdenum Discs

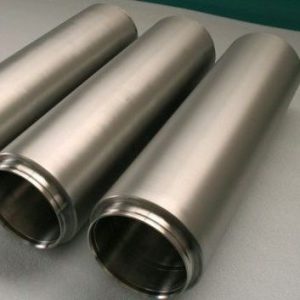

Molybdenum Tube

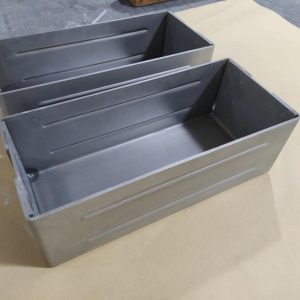

Molybdenum Boat

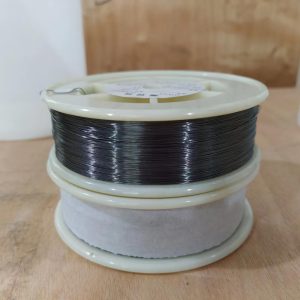

Tungsten Wire
Tungsten Crucible

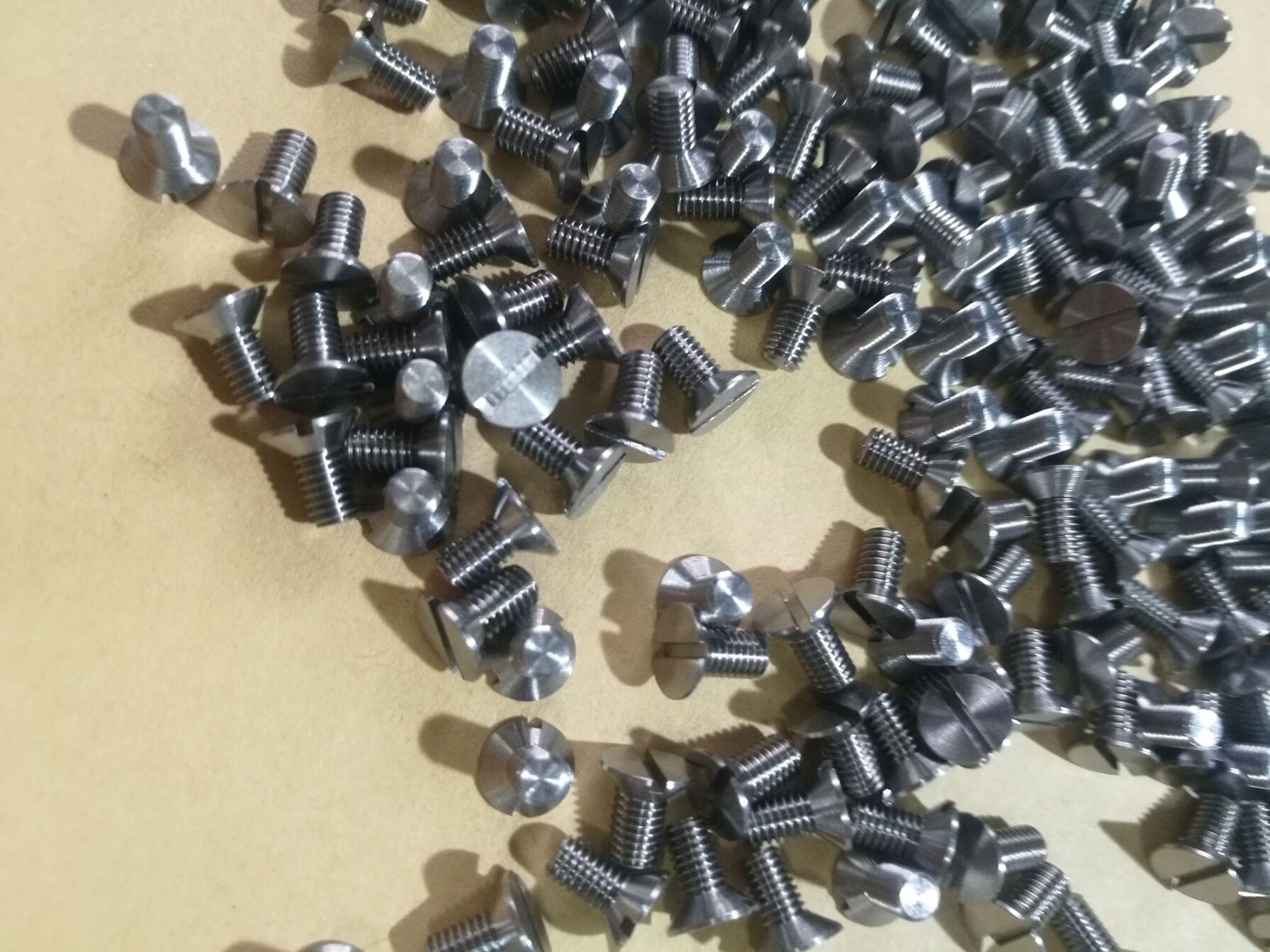

tungsten fastener

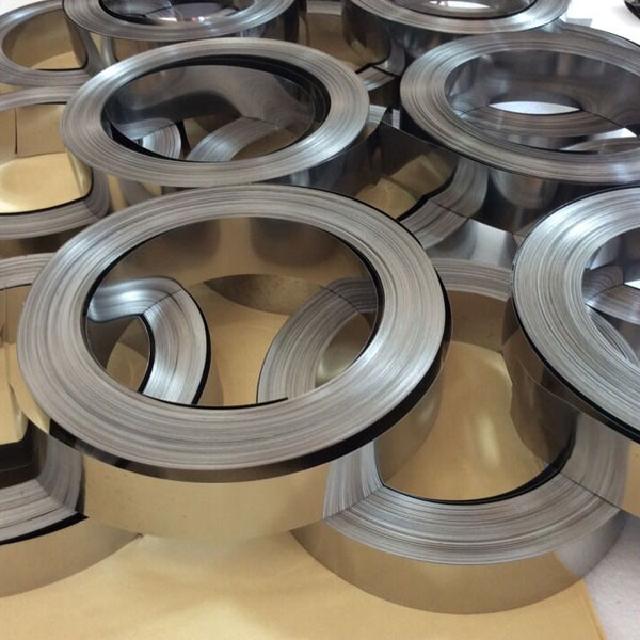

tantalum strip

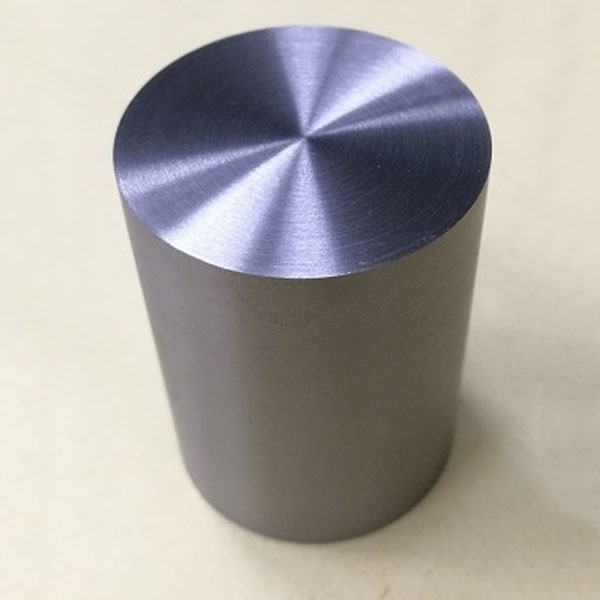

tantalum rod

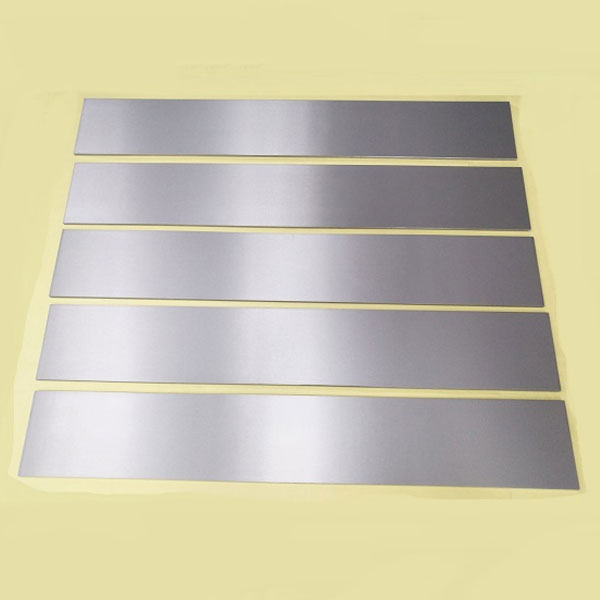

tantalum Sheet

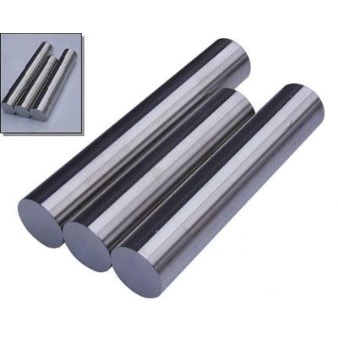

Niobium Rod

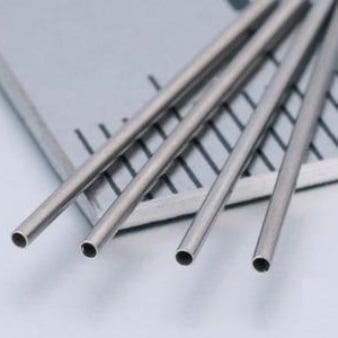

Niobium Tube
Niobium Sheet
Need help in choosing the right Molybdenum/Tungsten?
ASK FOR HELP
Henan Ming Chuan machinery equipment co.,ltd is a renowned company specializing in the production and processing of tungsten, molybdenum, Niobium , Tantalum and their alloy products. With a strong focus on deep production and advanced manufacturing techniques, Ming Chuan has established itself as a leading provider in the industry.
Trusted by Global Customers
Working with MingChuan has been a game-changer for our manufacturing business. Their molybdenum and tungsten products are of exceptional quality, and they have greatly improved the performance and durability of our components. We highly recommend their materials.”
David–Manufacturing Industry
“The molybdenum and tungsten products from Mingchuan Molybdenum Tungsten have exceeded our expectations. The materials are precisely crafted and consistently reliable. Their commitment to customer satisfaction is evident, and we look forward to continuing our partnership.”.”
Dr. Sarah Jones– Scientific Research Institution
“I recently purchased tantalum metal products from your company, and I must say I am thoroughly impressed. The purity and consistency of the materials are outstanding, allowing us to meet our project requirements with ease. Your prompt customer service and attention to detail have made it a pleasure to work with you.”
Zaid Bader–Research and Development
“I have been using your molybdenum products for several years, and I continue to be amazed by their exceptional quality. The materials are incredibly versatile and have improved the overall efficiency of our operations. Your team’s commitment to excellence is evident, and I highly recommend your products.”
Faruk Khan–Thin Film Industry
Frequently Asked Questions (FAQ) – Rare Metals Customized Products
- Q1: What rare metals do you specialize in?
A1: We specialize in molybdenum, tungsten, tantalum, niobium, and other refractory metals. We offer a variety of customized products made from these metals to meet specific industrial requirements. - Q2: What types of customized products do you offer?
A2: We offer a wide range of customized products, including rods, sheets, plates, wires, tubes, crucibles, and components for various industrial applications. Our products are tailored to meet the precise specifications of our customers. - Molybdenum Products
- Q3: What are the common applications of molybdenum products?
- A3: Molybdenum products are commonly used in high-temperature furnaces, aerospace, electronics, medical devices, and the nuclear industry due to their excellent thermal and electrical conductivity, high strength, and resistance to corrosion.
- Q4: Can you provide molybdenum products with specific purity levels?
- A4: Yes, we can produce molybdenum products with various purity levels, depending on the requirements of your application. Please specify your purity requirements when requesting a quote.
- Tungsten Products
- Q5: What are the advantages of using tungsten products?
- A5: Tungsten products are known for their high melting point, density, and strength. They are widely used in industries such as aerospace, defense, electronics, and medical for applications requiring high durability and heat resistance.
- Q6: Do you offer tungsten alloys?
- A6: Yes, we offer various tungsten alloys, including tungsten-copper and tungsten-nickel-iron alloys, which provide enhanced properties for specific applications.
- Tantalum Products
- Q7: What makes tantalum suitable for use in electronics and medical devices?
- A7: Tantalum has excellent biocompatibility, high corrosion resistance, and good conductivity, making it ideal for use in medical implants, electronic components, and chemical processing equipment.
- Q8: Can you manufacture tantalum products with complex shapes?
- A8: Yes, we specialize in manufacturing tantalum products with complex shapes and intricate designs to meet the specific needs of our customers.
- Niobium Products
- Q9: What industries commonly use niobium products?
- A9: Niobium products are used in aerospace, superconducting materials, nuclear reactors, and chemical processing due to their high strength, low density, and excellent corrosion resistance.
- Q10: Do you offer niobium-titanium alloys for superconducting applications?
- A10: Yes, we provide niobium-titanium alloys specifically designed for superconducting applications, offering high performance and reliability.
- Customization and Technical Support
- Q11: How do you ensure the quality of your rare metal products?
- A11: We adhere to strict quality control standards, including advanced manufacturing processes, thorough testing, and certification to ensure our products meet the highest industry standards.
- Q12: Can you provide custom fabrication and machining services?
- A12: Yes, we offer custom fabrication and machining services to produce components and products that meet your exact specifications. Our experienced team can assist with design, prototyping, and production.
- Q13: What information do I need to provide for a custom order?
- A13: For a custom order, please provide detailed specifications, including material type, dimensions, tolerances, purity levels, and any special requirements. Our team will work with you to ensure all details are met.
- Q14: How can I get a quote for your rare metal products?
- A14: To get a quote, please contact us through our website or email us at info@mcwmo. Provide details about your requirements, and our sales team will get back to you with a customized quotation.
- Q15: What kind of technical support do you provide?
A15: We offer comprehensive technical support, including material selection advice, design assistance, troubleshooting, and after-sales service. Our team is dedicated to helping you achieve the best results with our products.
Request a Free Quote Today
Whether you need a molybdenum crucible, a tungsten heating element, or a custom niobium plate, we are ready to provide you with high-quality, cost-effective solutions.
Contact Us for fast consultation, technical support, and competitive pricing.
